Yasutoshi Ishihara

Building a System for Early Detection of Cancer

Progress in Nanotechnology and Development of a New Medical Imaging System

There has been a great deal of research on magnetic nanoparticles*1 recently, serving to create innovative materials and making a significant contribution to the development of new technologies and systems in various fields. In the medical field, in particular, a wide variety of applications are envisioned for magnetic nanoparticles, and they are already used as a contrast agent in magnetic resonance imaging (MRI) to construct a clear image of the lesion location. In 2005, a magnetic particle imaging (MPI) technique was proposed for early detection of disease, including cancer, which leverages the unique properties of magnetic nanoparticles.

Principle – How MPI Works

Nanoparticles, having the diameter of several tens of nanometers, accumulate in cancerous tissues. This is attributable to abnormal angiogenesis*2 induced by rapid proliferation of cancer cells. Abnormal angiogenesis creates a vascular structure with gaps one-digit wider than in normal blood vessels, usually in several hundreds of nanometers, through which nanoparticles seep into cancerous tissue and stay there for a specific period of time. Identifying the location of these magnetic nanoparticles seeped into cancerous tissue enables construction of an image and early detection of cancer.

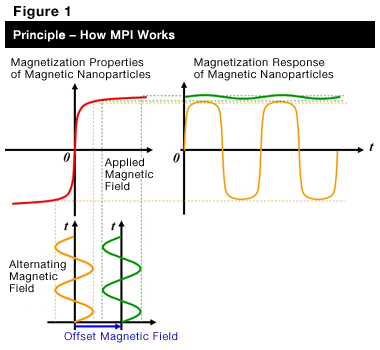

Magnetic nanoparticles show magnetic behavior (magnetization) (red line in Figure 1) when exposed to a magnetic field. Applying an alternating magnetic field also makes the magnetization intensity of nanoparticles to vary over time (orange line in Figure 1). Application of another strong magnetic field (an offset magnetic field) to these nanoparticles makes the intensity of magnetization remain constant (saturation of magnetization) with no additional changes in intensity observed over time (green line in Figure 1). Figure 2 (a) shows a magnetic field distribution of varying strengths (weak in one area and stronger in the surrounding areas). By applying an alternating magnetic field to this magnetic field distribution while scanning its spatial data, as depicted in Figure 2 (b), and by detecting variations in magnetization of nanoparticles, we can determine whether these nanoparticles exist in the area with low field strength. This, in turn, allows construction of an image of the area in which magnetic nanoparticles accumulate, i.e., the location of cancer.

Current Status of MPI

Figure 3 shows an MPI system based on the above principle. It basically consists of magnets (electromagnetic coils) to generate a magnetic field distribution and a receiver coil to detect magnetization signals from magnetic nanoparticles. Using this model, we performed numerical computation of a case in which magnetic nanoparticles exist at the location shown in Figure 4 (a). Figure 4 (b) is an image of the numerical computation result constructed by using a conventional method. The figure shows the location of magnetic nanoparticles at its center, with artifacts appearing above and below it (artifacts are images that appear where they really do not exist). We are now examining ways to prohibit the appearance of artifacts and create an image that accurately represents the distribution of magnetic nanoparticles. Figure 4 (c) shows an image (the result of numerical computation) processed by using one of the new, proposed methods. As can be seen from the figure, there is a possibility of being able to prevent artifacts and image blurring. We are in the process of building an experimental system as shown in Figure 5 and studying the performance and issues concerning each of the proposed methods.


Future of MPI

Research on MPI has been conducted by research groups in Germany (University of Lübeck、Royal Philips Electronics, Bruker Corp. and others), University of California, Berkeley in the United States and Meiji University in Japan. Studies on image construction methods and system building have just begun, and much remains to be solved. Some have noted, however, that the current situation is very similar to what had happened in the early stage of MRI development, and there is a possibility that development of MPI may proceed at a considerable pace in the future. Moreover, generating heat in magnetic nanoparticles accumulated in cancerous tissues could heat up and kill these tissues, and we are simultaneously accelerating research on a system for magnetic hyperthermia. We hope to create a system that fuses diagnostic and treatment functions for detection and treatment of cancer in an extremely early stage, causing less burden on patients.

*1) Magnetic nanoparticles: Particles at the nanoscale, which show magnetic behavior when exposed to an external magnetic field. (One nanometer is equal to one billionth of a meter.)
*2) Angiogenesis: A phenomenon encouraging growth of new blood vessels in cancer cells to take in oxygen and nourishment. Growth of new blood vessels is controlled in normal cells.
